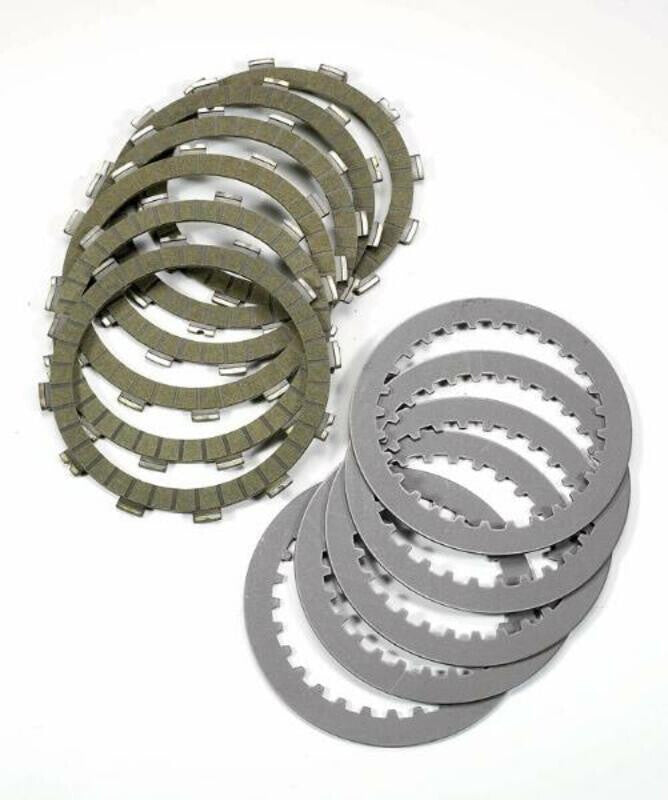

Beta RR 390 4 T [2022-2024] - Pro Race steel and friction disc clutch kit

NEWFREN Pro Race clutch kit for the Beta RR 390 4 T

The NEWFREN Pro Race steel and friction disc clutch kit was developed for the Beta RR 390 4 T from 2022-2024. The Pro Race Line is the racing product within the Newfren clutch series and combines specially developed friction discs with matching steel discs.

Friction material and disc design

The friction material mainly consists of cellulose, resins, carbon and other components. This means it achieves a very high coefficient of friction and is less compressible. The special design of the discs improves oil flow and helps the clutch work more efficiently. The combination of material and construction increases the stability of the pads and ensures consistent performance stability even under harsh operating conditions.

The development took place in collaboration with successful teams from the Superbike, Moto 3 and MXGP world championships. The kit is therefore tailored to the requirements of a high-quality racing product.

Technical data

• Kit composition: friction discs and steel discs
• Friction discs: 8 pieces, thickness 2.8, 12 edges
• Friction discs: outer diameter 132.5, inner diameter 111.5
• Steel discs: 7 pieces, thickness 1.4, 6 teeth
• Steel discs: outer diameter 134.4
• Steel discs: inner diameter of lower teeth 104 mm
• Steel discs: inner diameter of upper teeth 91.8 mm

Vehicle assignment

The clutch kit fits the Beta RR 390 4 T, built between 2022 and 2024.
