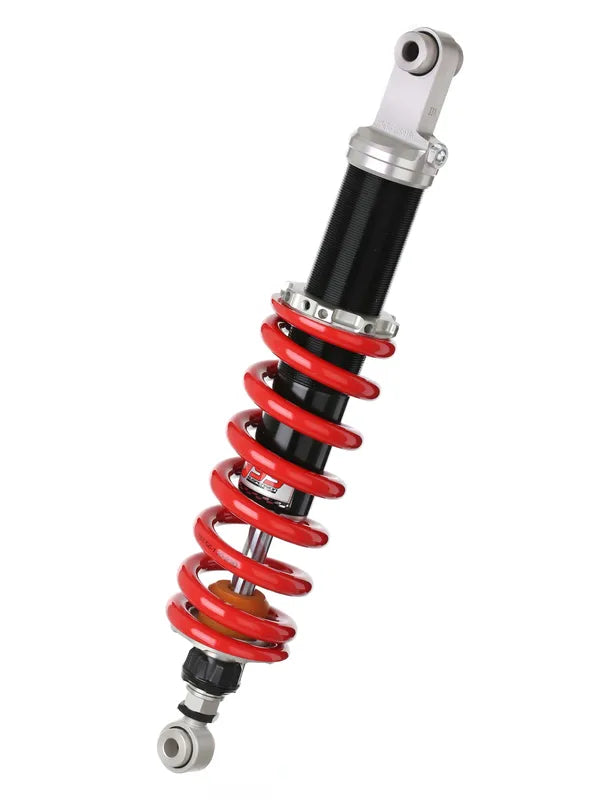

Yamaha XTZ 750 [YSS] – gas pressure emulsion mono shock absorber, adjustable length

YSS gas pressure emulsion mono shock absorber for Yamaha XTZ 750

The YSS gas pressure emulsion mono shock absorber is specially designed for the rear suspension of the Yamaha XTZ 750. It combines high-quality materials and precise adjustment options to improve driving stability and comfort.

Technical features

• Bore size: 45.00mm (1.77")
• Damper method: Emulsion
• Setting type: Manual rebound damping
• Spring preload: Thread adjustable
• Length adjustability: Adjustable length with ±5 mm height adjustment
• Length (extended): 460.00mm (18.11")
• Spring type: Simple linear spring rate
• Material: aluminum and steel
• Color/Surface: Silver, red, black
• Mounting position: Rear

Function and application

The mono shock absorber works with a gas pressure emulsion system that ensures uniform damping and reliable suspension. The manual rebound damping allows the response behavior to be individually adjusted to different driving conditions. The thread-adjustable spring preload allows the spring force to be fine-tuned in order to optimally adapt the chassis to the weight and driving style.

The adjustable length with a height adjustment of ±5 mm supports the adjustment of the vehicle height and contributes to improving driving stability. The combination of aluminum and steel ensures a good balance between robustness and low weight.

Processing and design

The shock absorber is available in silver, red and black and is characterized by a high-quality surface treatment. The materials and workmanship are designed for durability and resilience to meet the requirements of on- and off-road use.

This shock absorber model is supplied individually and is part of the rear suspension group (SUSPENSION GROUP-REAR) for the Yamaha XTZ 750. It is a suitable component for the maintenance or replacement of the original shock absorber.
