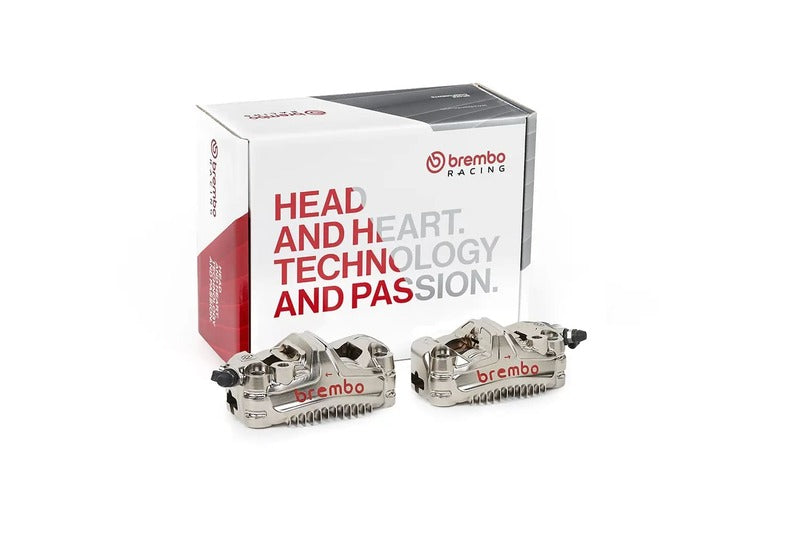

Yamaha Mt 10 [BREMBO RACING] - 18mm GP4-MS radial brake caliper kit

This Radial brake caliper kit is a highly developed component for motorcyclists who value performance and precision. This kit consists of a pair of brake calipers specifically designed for racing applications and offers outstanding braking performance.

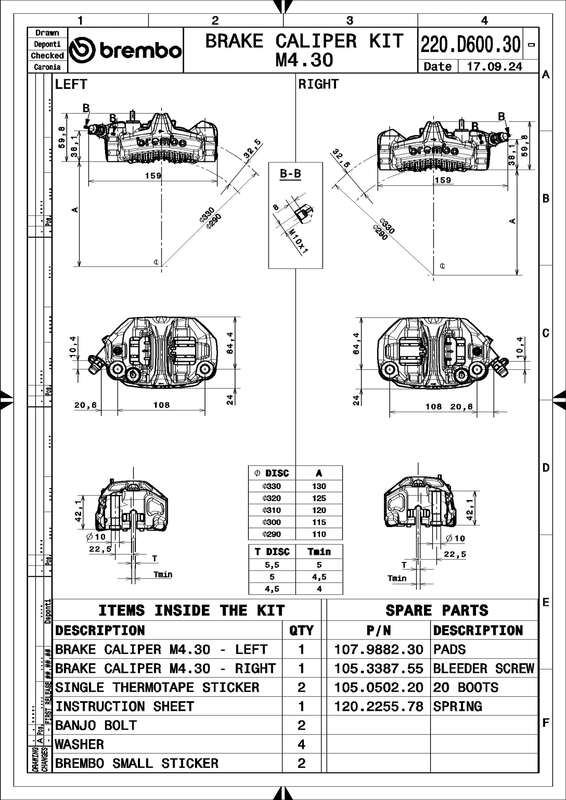

Technical data:

• Center distance: 108 mm
• Offset: 22.5mm
• Piston Ø: 30 mm
• Number of pistons: 4
• Piston material: aluminum
• Brake band H: 34 mm
• Surface: nickel plating
• Including brake pads
• NOT compatible with ABS system
• DO NOT use with 30 mm brake disc height
• Tightening torque for the bleeder screw: 12÷16 Nm
• Color: Silver
• Material: aluminum
• Position: Front
• Volume: 8451 cm³
• Weight: 2390g
• Length: 288mm
• Width: 224mm
• Height: 131mm

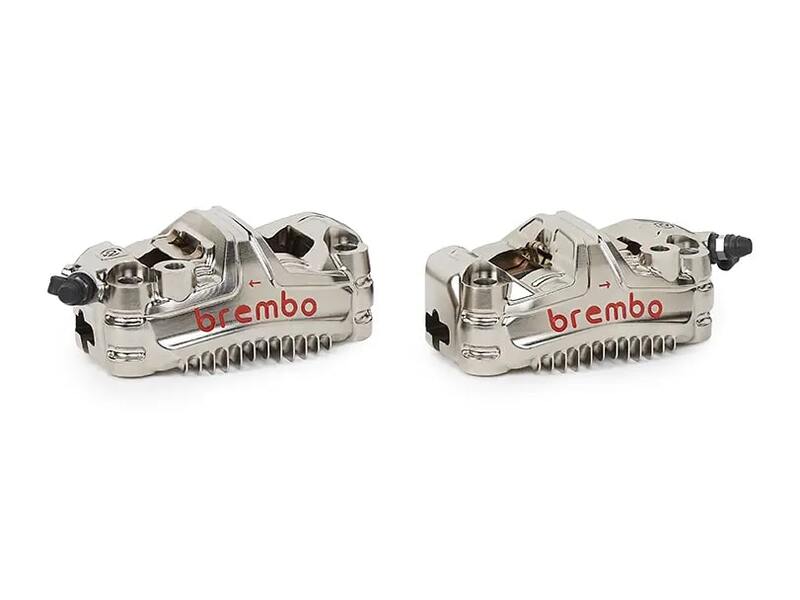

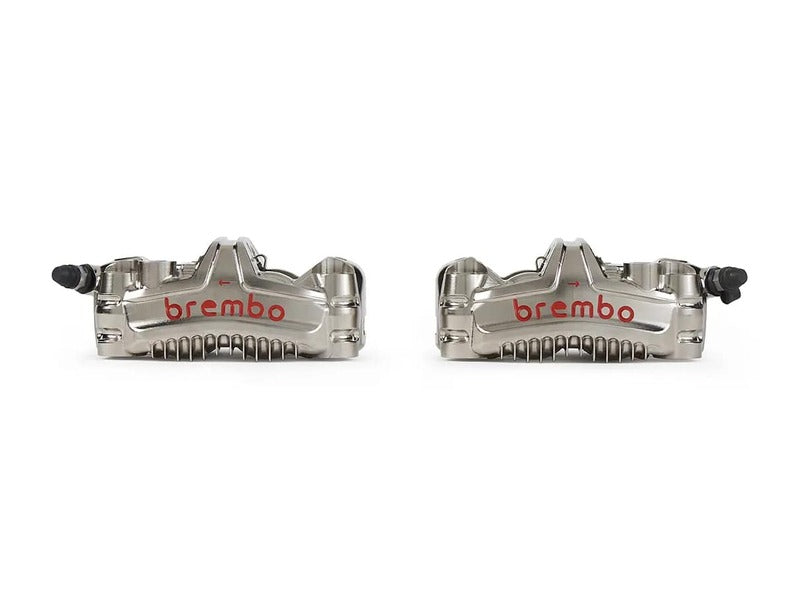

The BREMBO Racing 18mm GP4-MS radial brake caliper is made from a single block of aluminum alloy machined using CNC technology. This manufacturing method guarantees maximum rigidity and excellent precision, which are particularly crucial under high-load conditions in motorsport. The topological optimization also achieves an optimal distribution of the material, which further improves the performance and durability of the brake caliper.

Important information about installation

The Radial Caliper Kit is not compatible with ABS systems and should not be used with a brake disc height of 30mm. It is important to keep the tightening torque for the bleed screw exactly between 12 and 16 Nm to ensure the best possible functionality and safety.

With this brake caliper kit, motorcyclists can experience significantly improved braking response and efficiency, which is particularly beneficial in critical racing situations or at high speeds. The silver nickel plating not only protects the material from corrosion, but also gives the brake calipers an aesthetically pleasing appearance.
