Vespa Cosa 125 [1988-1997] - racing clutch with Z22 sprocket with helical teeth

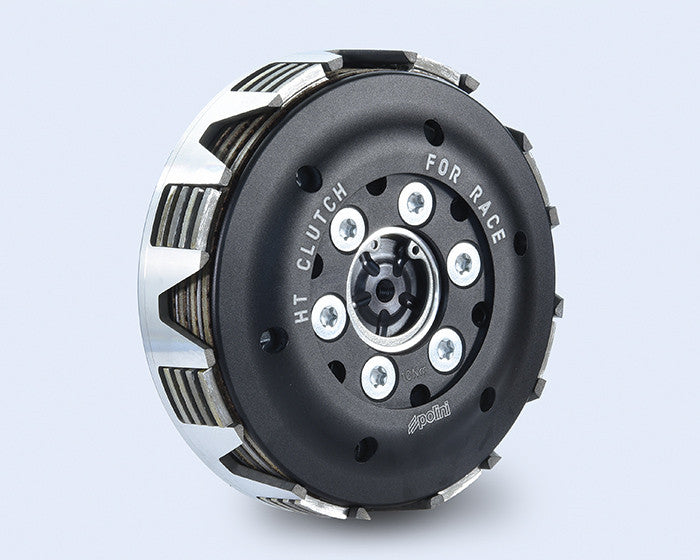

POLINI racing clutch with Z22 pinion for Vespa Cosa 125

The POLINI racing clutch with Z22 ring gear and helical-toothed pinion is designed for the Vespa Cosa 125 in the 1988-1997 model year range. Their HT design uses a reversed mode of operation: the unit connected to the crankshaft is the inner hub instead of the outer bell.

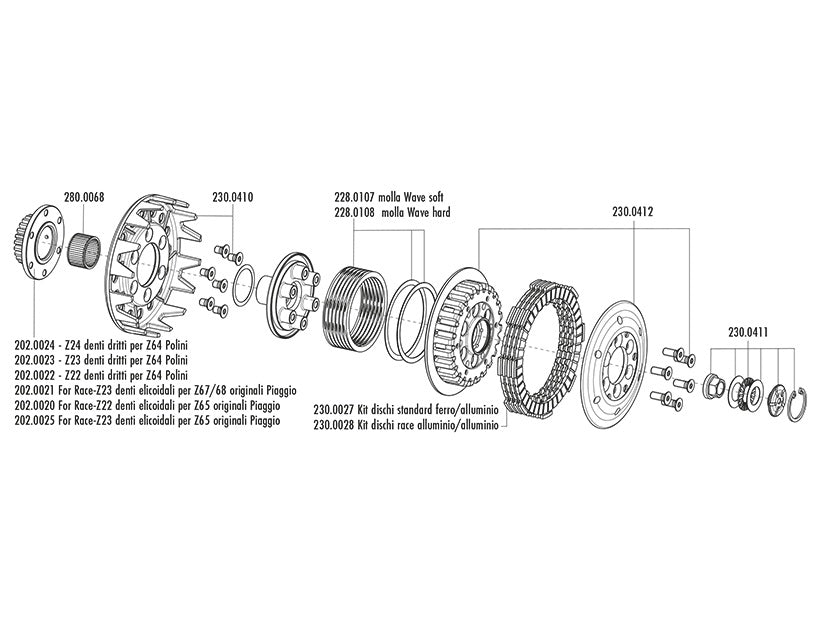

Function and construction

The clutch is designed for frictionless transmission and precise operation. The reinforced aluminum discs have 8 teeth. This supports the power transmission within the clutch. The pressure plate works on a thrust bearing, while the aluminum bell forms the central housing element of the clutch.

• Pressure plate on thrust bearing
• Aluminum bell
• Block cover with oil collecting groove
• Reinforced aluminum discs with 8 teeth
• Z22 pinion with helical teeth

Setting options

The spring force of the clutch can be adjusted. In addition, the teeth of the primary gear can be selected according to the desired ratio. Replacing the primary gear allows the POLINI HT clutch to be adapted to different gear ratios. The design supports precise and smooth gear changes.

Vehicle assignment

Suitable for Vespa Cosa 125, years 1988-1997.
