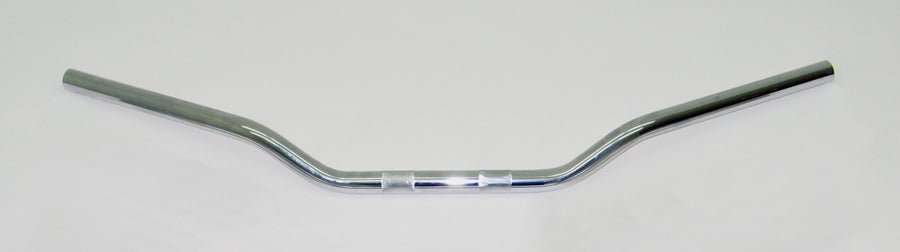

Motorcycle driver Ø 25 - Superbike -Lenker 760 mm wide

Superbike driver 760 mm wide

Brand: Fehling; Model: Ø 25; Article: Superbike-Lenker 760 mm wide; Years of construction: K.A.

Product description

The Superbike Leaders from Fehling with a width of 760 mm and a diameter of 25.4 mm (1 inch) is designed for motorcyclists who value precise control and comfortable handling. The technical specifications of the handlebar are carefully coordinated to ensure optimal driving experience.

Technical details

• Width: 760 mm - total width of the handlebar
• Height at the end of the external bend: 75 mm
• Depth back: 105 mm - distance from the assembly area to the end of the handlebar
• Height at the end of the end of the handle: 100 mm
• Dimensions at the intersection of the pipe outer edges: 260 mm

Dimensions in attachment

• Height: 70 mm - height of the handlebar in assembled condition
• Depth back (pullback): 125 mm - indicates how far the handlebar is moved backwards

Further dimensions

• Maximum grip length: 200 mm
• Maximum clamping width: 178 mm
• Width of the knurling (outside): 120/60 mm

These dimensions are crucial for the selection of the right handlebar and should be taken into account during assembly in order to ensure the best possible fit and function.
