BMW R 120 G/S R [2004-2012] - Universal GPS Mount

Flexible and secure mounting for navigation devices

The universal GPS mount was developed to attach a navigation device securely and effectively to a support tube. Two CNC-machined Ergal arms allow installation on tubes with diameters from 12 to 25 mm, while the sliding base supports different installation configurations.

Well-designed construction

• Installation on suitable support tubes with diameters from 12 to 25 mm
• Two CNC-machined Ergal arms in different sizes

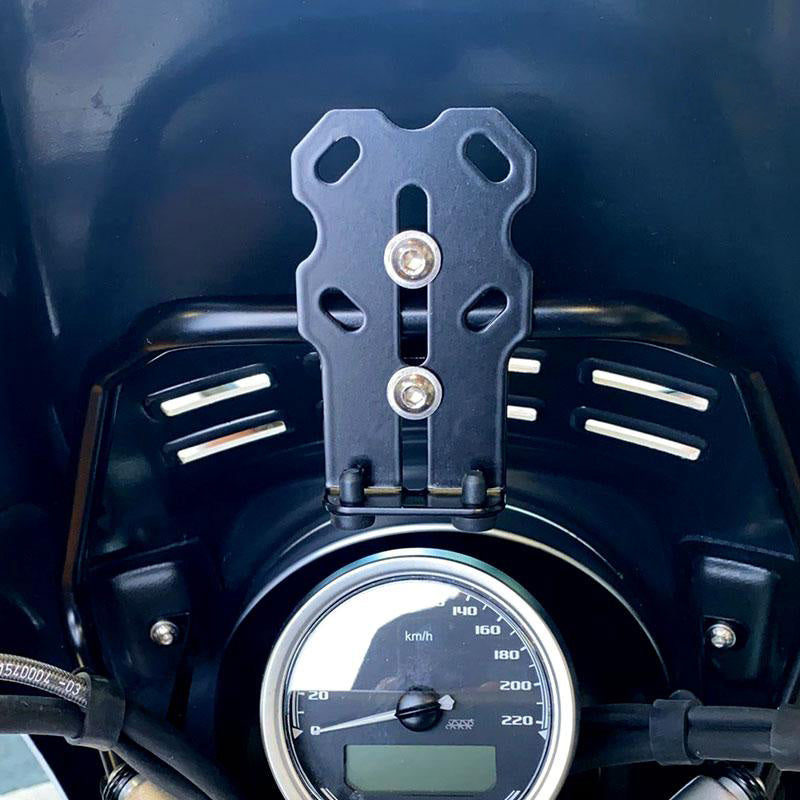

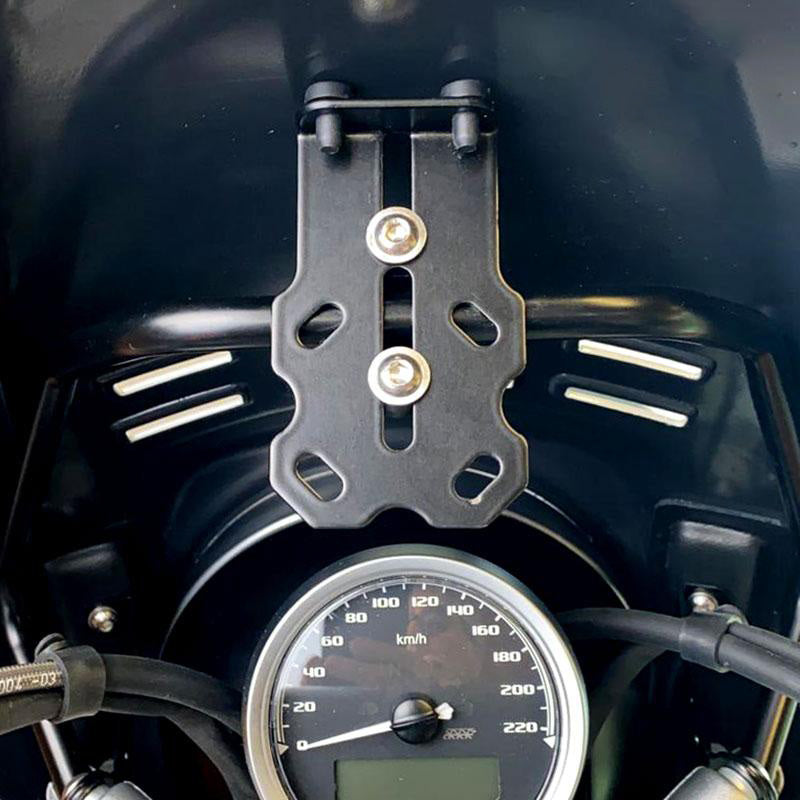

• Sliding base for adapting to different installation configurations
• The steel base can be installed in four different positions where possible
• Rubber elements serve as supports and spacers for the GPS
• AMPS-standard hole pattern with 30 x 38 mm mounting center spacing

Materials and finishes

• Sliding steel base with black epoxy powder coating
• Black Ergal arm for tubes from 12 to 18 mm
• Silver Ergal arm for tubes from 14 to 25 mm
• Stainless steel mounting screws

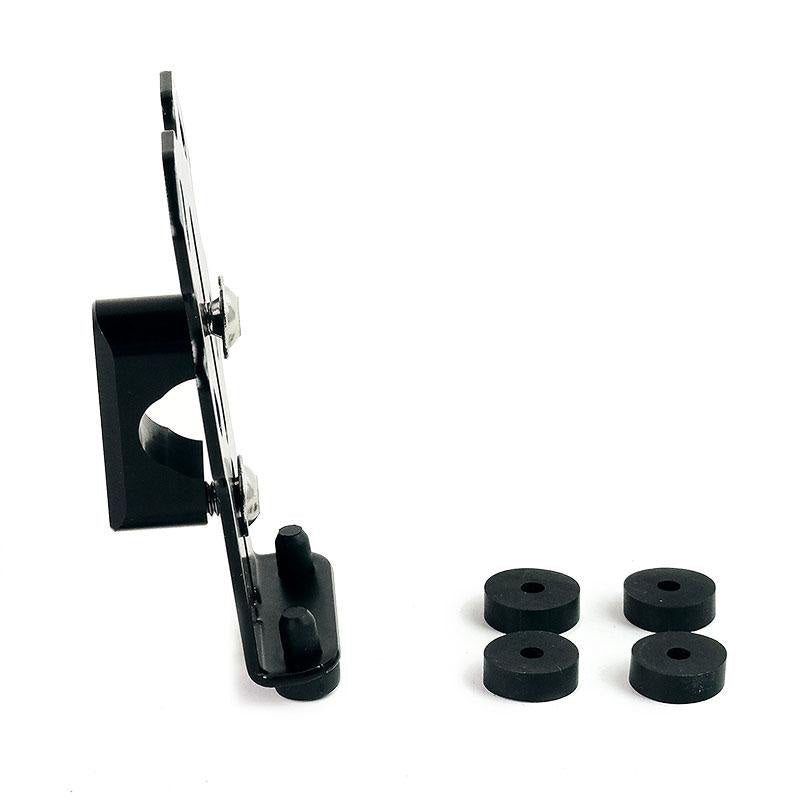

Scope of delivery

• One sliding base made of black powder-coated steel
• Two M6 stainless steel screws
• One black Ergal arm for tube diameters from 12 to 18 mm
• One silver Ergal arm for tube diameters from 14 to 25 mm
• Four rubber spacers for attaching the GPS to the sliding base

Important installation information

The four screws for attaching the GPS directly are not included. Since these vary depending on the navigation device, they are usually supplied with the GPS.

Compatibility

The mount is universally designed for numerous motorcycle models and is installed on a suitable support tube. The existing tube diameter determines which Ergal arm should be selected. It is compatible with BMW R120 G/S, R120 G/S R, R 1200 GS and R 1200 GS ADV, among others.

Unit Garage continuously refines its products in detail. Images may therefore show an earlier version.
