Yamaha Ténéré 700 [DENALI] - Kit S4 DialDim

This DENALI Kit S4 DialDim offers an advanced lighting control solution for motorcycles that increases efficiency and safety during night riding and poor visibility conditions. This kit is specifically designed for the Yamaha Ténéré 700, but can also be adapted for other models.

Technical data:

• Product name: DENAL DIALDIM KIT S4 TENERE
• Designation: DENALI Kit S4 DialDim
• Controller: DialDim
• Color: Black
• Homologation: Swiss approval, please note the Asa 2b guidelines
• Light type: LED
• Material: aluminum
• Position: front
• Packaging: 4 pieces.
• Volume: 5272 cm³
• Weight: 1787g
• Dimensions: 174mm x 174mm x 174mm
• Current consumption: 2.3 amps
• Beam distance: 115m
• Beam width: 23m
• Raw Lumens: 3066
• Intensity: Single Intensity Harness
• DataDim™ compatible: Yes

Features:

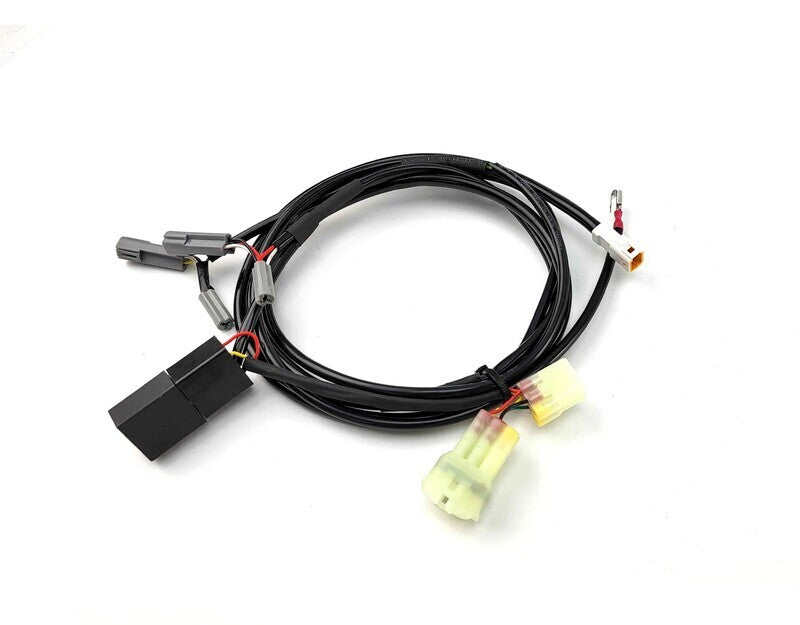

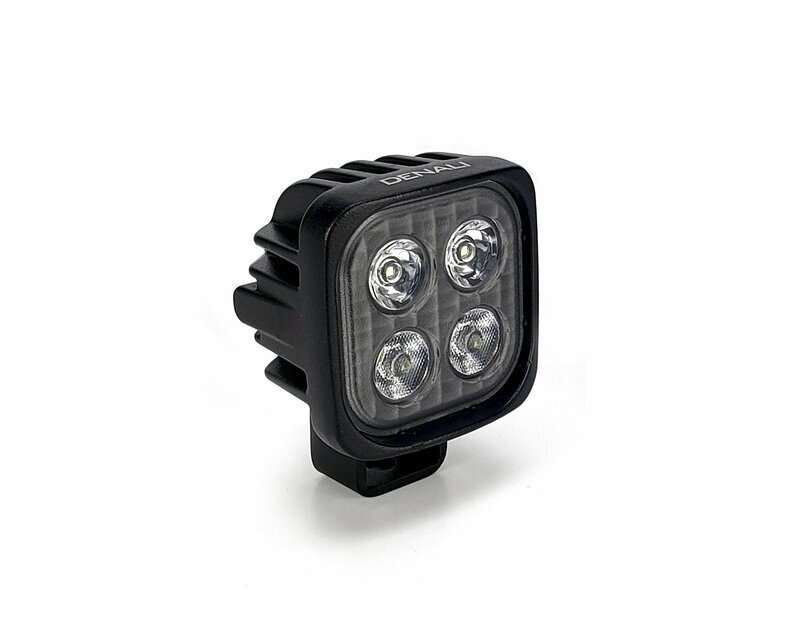

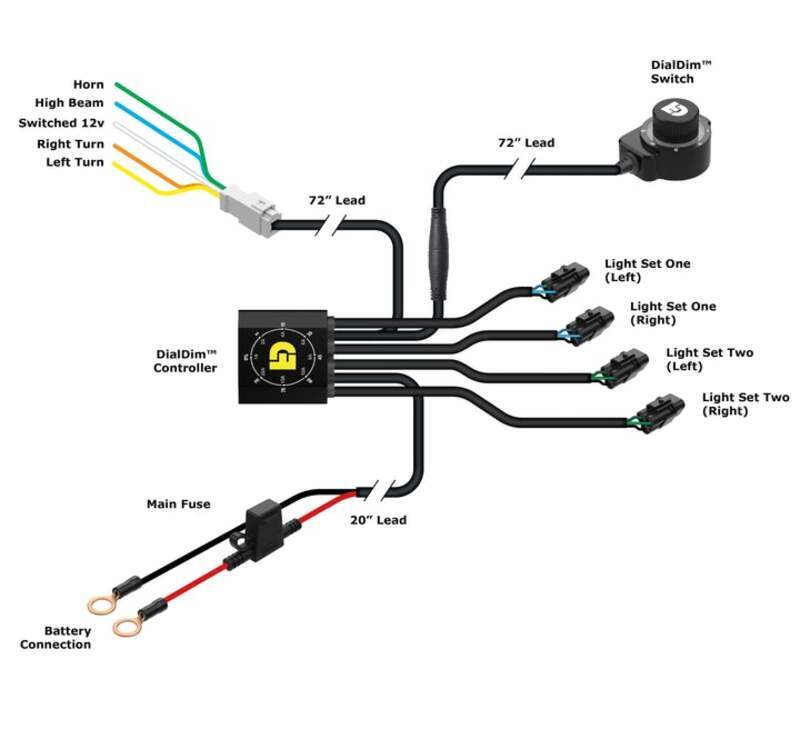

The kit includes the DENALI DialDim Lighting Controller, one Plug-&-Play DialDim™ cable adapter and two DENALI S4 LED additional lighting with 10W power each. These high-performance LEDs provide 3066 lumens of light output per pod, supported by DrySeal™ Submersible Waterproof technology that keeps the lights functioning even in extreme conditions.

This LiveActive™ Thermal Management The system ensures that the LEDs remain cool and therefore deliver a consistently high light output without the risk of overheating. The fixed lens system combines flood and spot optics for an optimal beam pattern that enables both broad and selective illumination.

Intelligent lighting control:

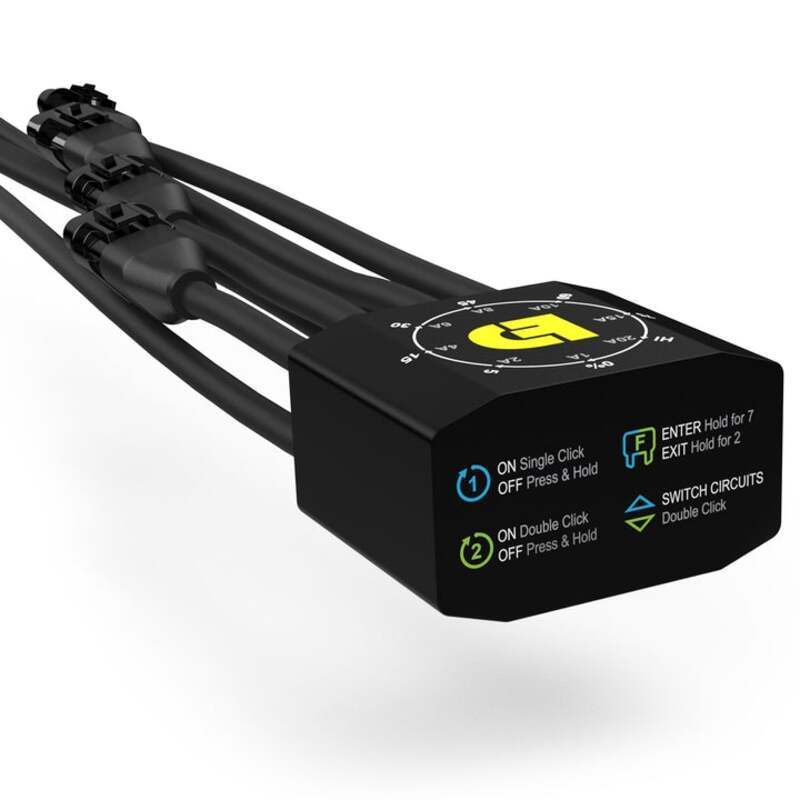

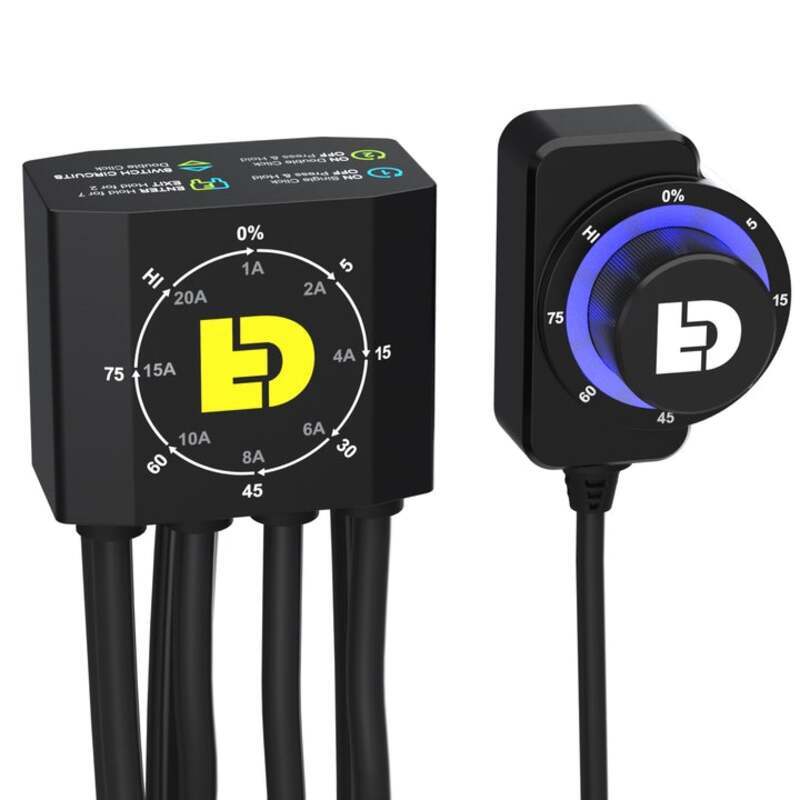

The DialDim™ lighting control offers advanced features such as independent on/off and dimming of two groups of lights, high/low sync with the factory high beam switch, a stealth mode for covert lighting and the ability to synchronize the lights with turn signals and horn signals. These features increase the safety and flexibility of lighting settings depending on driving conditions.

In addition, the circuits are electronically protected to ensure reliability and longevity. An integrated voltage indicator warns of low battery voltage to ensure your vehicle battery does not discharge unexpectedly.

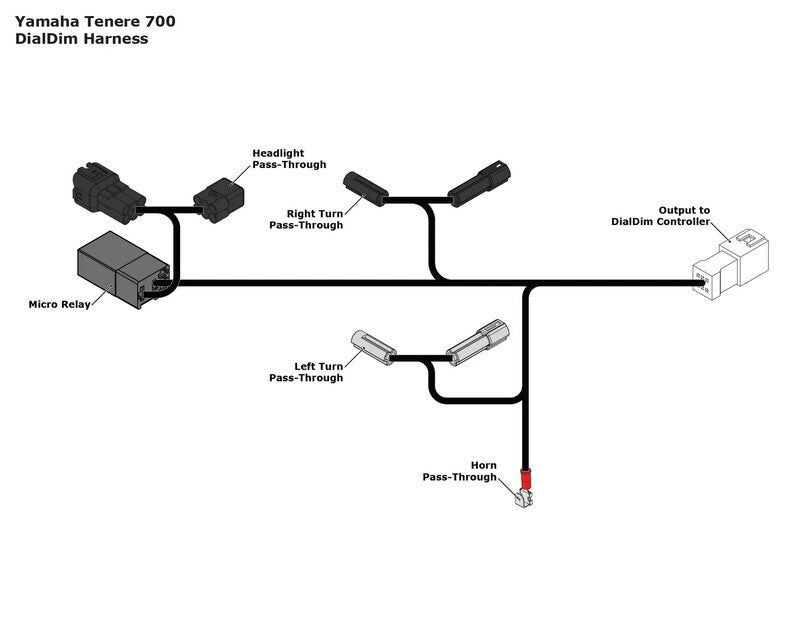

Installing the kit is quick and easy thanks to the Plug&Play cable adapter, with no complex wiring or adjustments required. This kit is not only practical and powerful, but also homologated according to Swiss guidelines, which allows it to be used on public roads.
