Yamaha Tenere 700 [DENALI] - CANsmart™ Controller GEN II

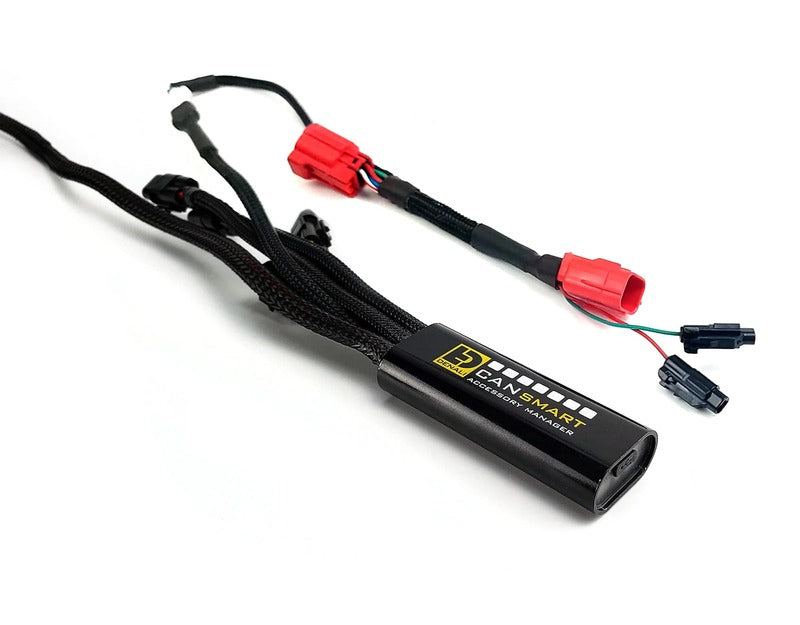

Experience a new dimension in motorcycle customization with the DENALI CANsmart™ Controller GEN II, designed specifically for the Yamaha Ténéré. This advanced controller leverages the intelligence of the CAN bus electrical system to revolutionize the installation and control of motorcycle accessories.

Product description

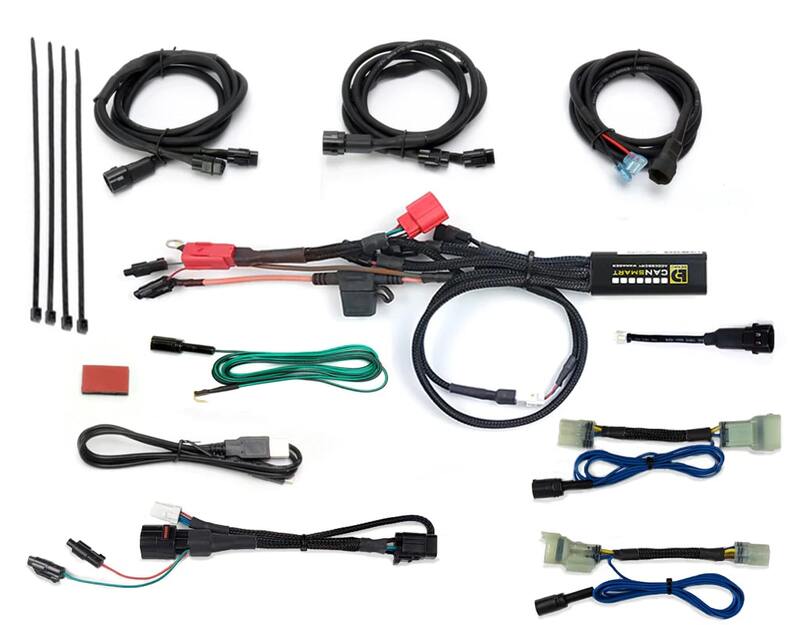

By using the DENALI CANsmart™ Controller, you can perform a plug-and-play installation of up to four accessories. This system allows for dozens of customizable settings that can be controlled via either your Ténéré's hand controls or the dedicated CANsmart™ accessory manager software.

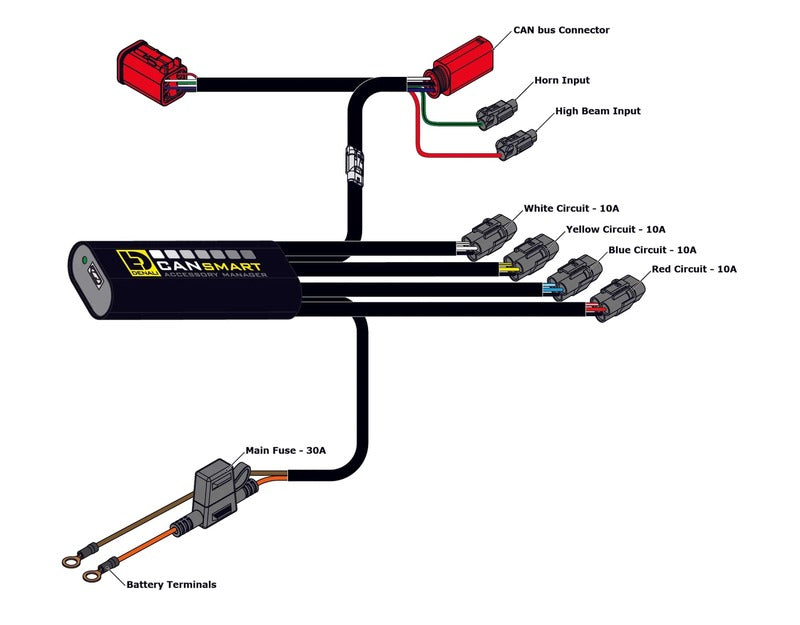

Thanks to the controller's four pre-programmed circuits, it is possible to connect and control two sets of DENALI 2.0 lights, a SoundBomb horn and the B6 auxiliary brake light. With the second generation of the CANsmart™ controller, also known as Gen II, the features and performance have been significantly improved compared to the previous model. Each of the four circuits can now deliver a continuous current of up to 10 amps, and the total current draw of the device can reach 30 amps continuously.

Technical data:

• Designation: DENALI CANsmart™ Controller GEN II
• Volume: 2740 cm³
• Weight: 789g
• Dimensions: 200mm x 133mm x 103mm

Advanced features

Lighting control

• High/Low Sync - Switch between high and low beams with the factory high beam switch.
• ON/OFF and dimming - Control the brightness of your lights directly via your vehicle's original switch.
• Modulate lights - Increase your visibility by modulating the additional lights.

Security features

• Flash to Pass - Signal quickly by flashing the additional headlights three times.

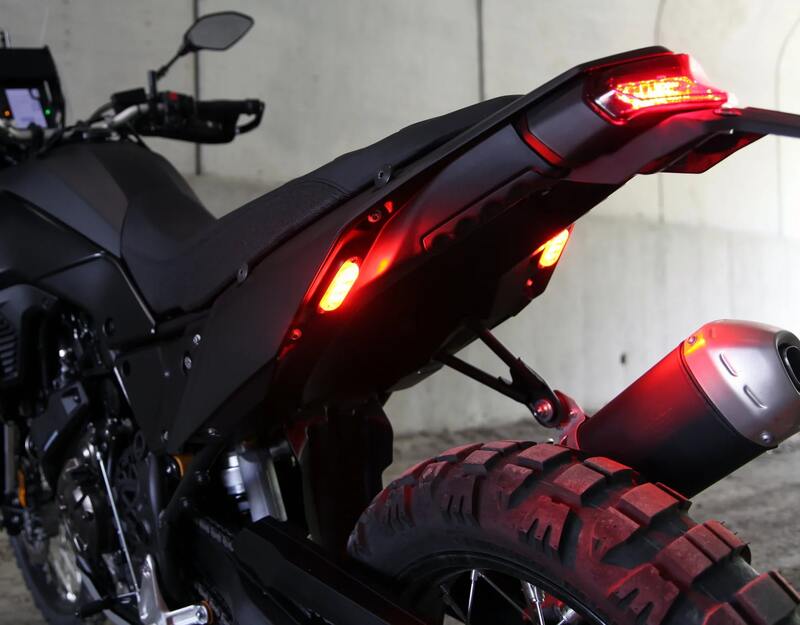

• Smart Brake - Activate the additional brake light by measuring your speed even before the brake is applied.
• Flashing Pattern Braking - Choose from different flashing patterns to increase visibility when braking.

Additional adjustments

• Circuit Function Selector - Select the desired function for each of the four circuits via the CANsmart software.
• Switched Power Source - Accessories turn on and off with ignition.
• Delay Timeout - Keep accessories powered for up to 30 seconds after the engine turns off.

This sophisticated ECU is not only a significant advance in motorcycle technology, but also an essential tool for any Ténéré rider looking to enhance their ride with custom accessories.
