KTM 990 RC R [2025] - Hypure brake caliper left

BREMBO Hypure brake caliper left for KTM 990 RC R

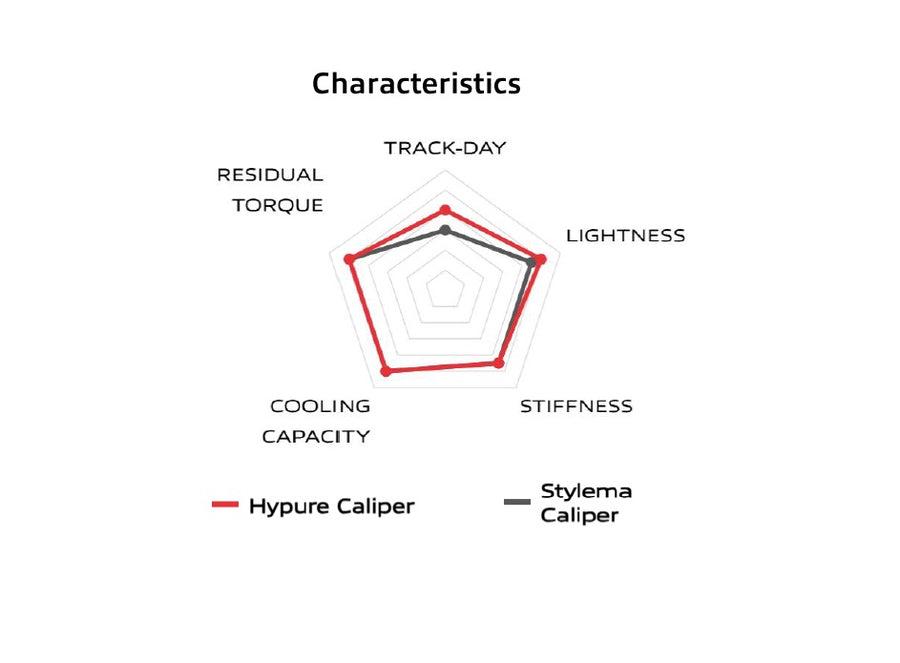

The BREMBO Hypure left brake caliper combines an asymmetrical design with a one-piece monobloc construction. Compared to reference brake calipers in the same class, the concept enables a 10% weight reduction while maintaining rigidity. The lower component weight supports agile handling and precise control when braking.

Function and design features

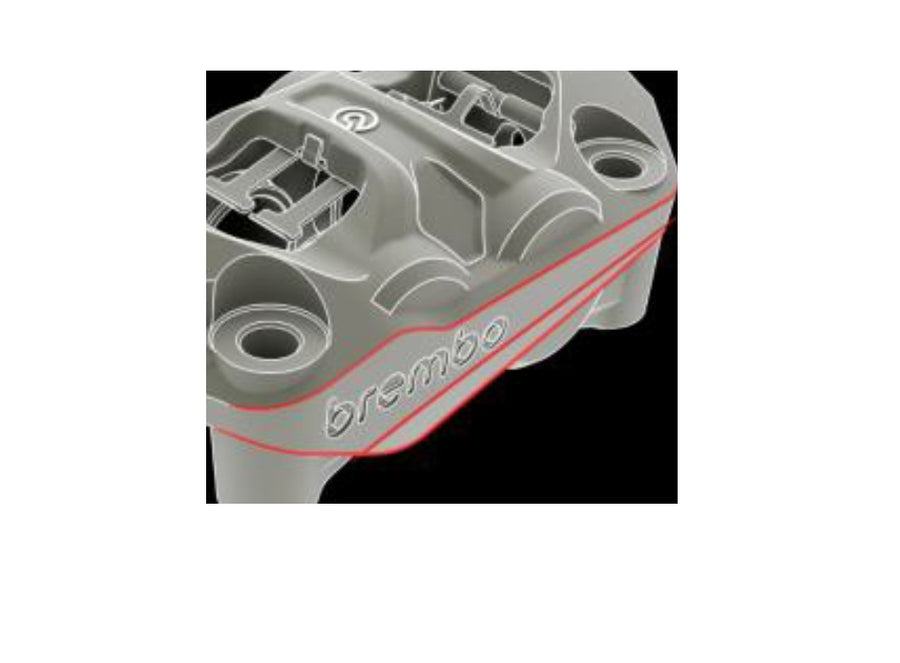

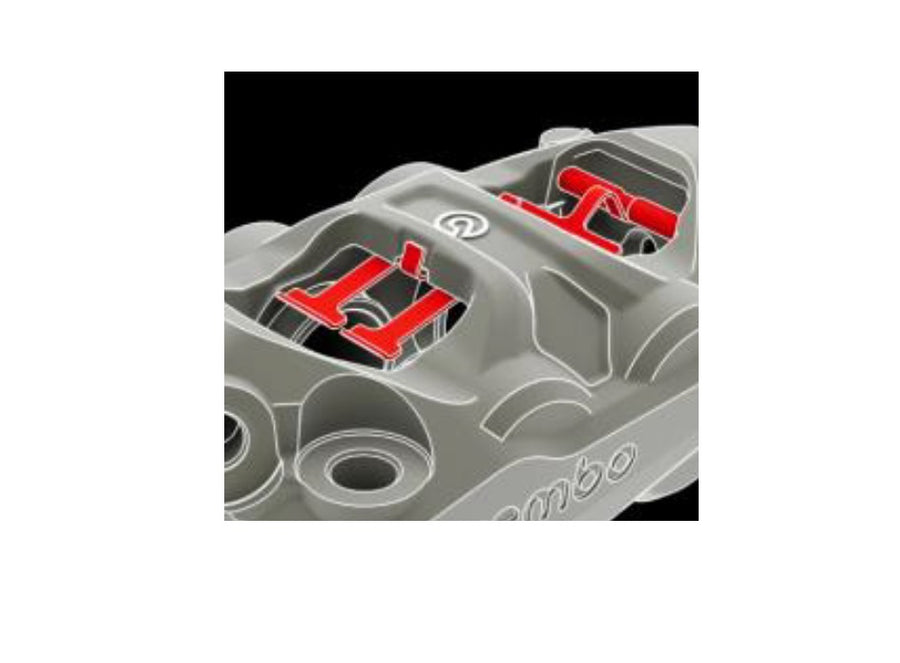

The patented spring/pad/pin system has a specially developed contact surface between saddle and pad. This minimizes the residual torque. Advanced heat transfer is designed for consistent braking performance. The brake caliper is intended for applications with two brake discs.

• Asymmetrical design with 10% weight reduction over the reference caliper for the same application and deformation level
• 4 pistons with Ø 30 mm
• Radial fastening with 100 mm center-to-center distance
• One-piece monobloc construction
• Aluminum as housing material

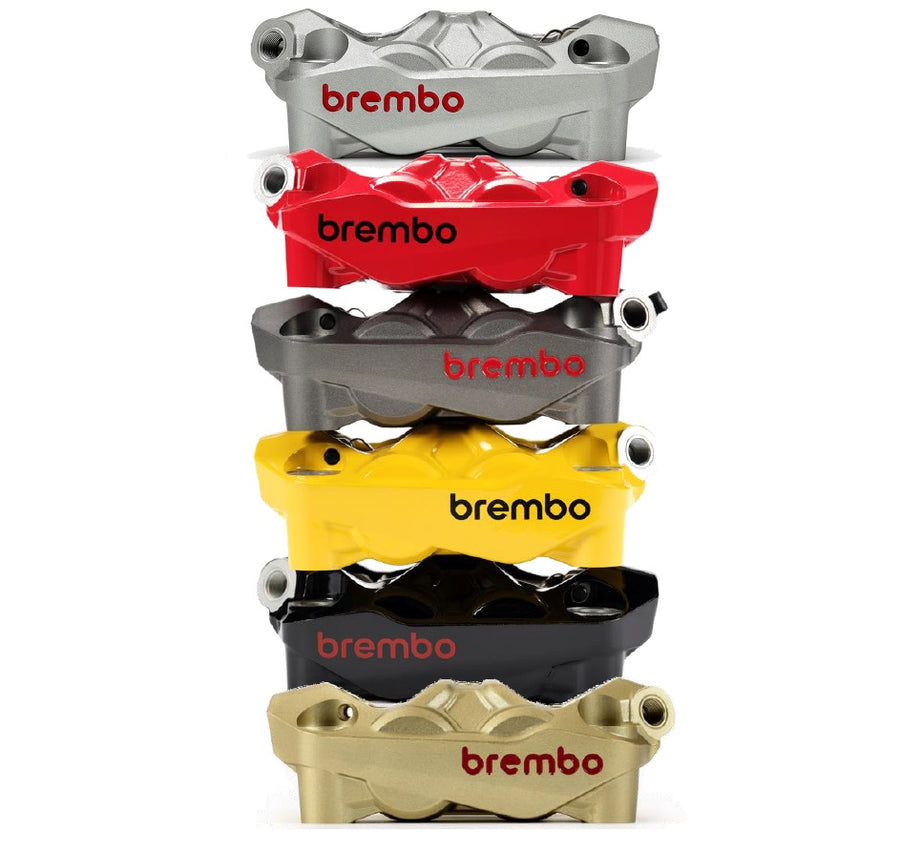

• Color: steel

Technical data

• Compatible brake discs: Ø 290 to 340 mm
• Brake disc thickness: 5 mm
• Pads: specially developed pad shape
• Position: front left
• Type: radial

Vehicle assignment

The BREMBO Hypure brake caliper on the left is assigned to the KTM 990 RC R, built in 2025.
