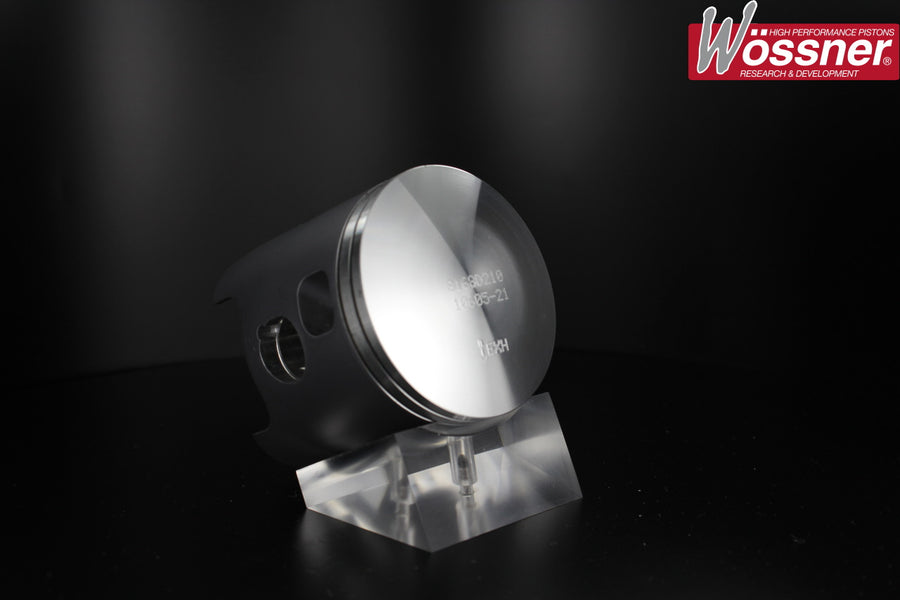

HUSABERG TE 250 [2011-2014] - WÖSSNER forged pistons

WÖSSNER forged pistons for HUSABERG TE 250 from 2011 to 2014

The WÖSSNER forged piston is assigned to the HUSABERG TE 250 in the full year range from 2011 to 2014. As a piston for the engine, it belongs to the top engine range and is designed for the specified 2T version.

Technical features

• Piston Type: Forged
• Material: aluminum
• Diameter Ø: 66.36 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 66.42mm
• Rings Quantity: 2
• Stroke: 2T

Matching the vehicle assignment

This forged piston is assigned to the HUSABERG TE 250 from the years 2011, 2012, 2013 and 2014. The marking C and the specified dimensions support the selection based on the required piston design.

Selection based on measurements

The diameter of 66.36 mm, the bore diameter of 66.42 mm and the oversize specification +0.02 are particularly relevant for the assignment. The version also has two piston rings. Before ordering, these technical values ​​should be compared with the existing engine version and the required piston specification.
