Honda CR 500 R (PE 02) [1984-2001] - cast pistons

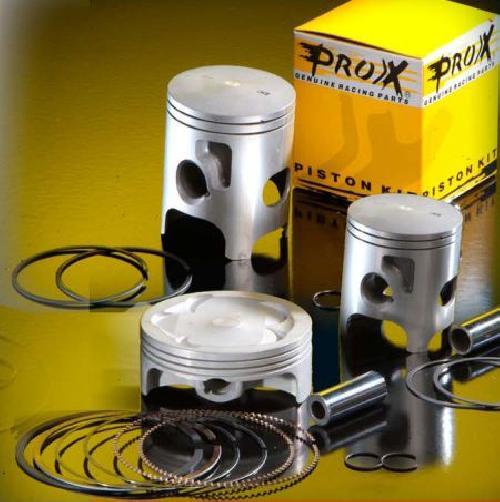

PROX cast piston for Honda CR 500 R (PE 02) 1984-2001

The PROX cast piston is assigned to the Honda CR 500 R (PE 02) in the entire model year range from 1984 to 2001. Its technical characteristics support a targeted selection when a piston with standard compression, defined oversize and suitable design is required for the 2T engine.

Design and piston features

• Piston Type: Cast
• Material: aluminum
• Piston compression: standard
• Diameter Ø: 90.50 mm
• Letter oversize: 150
• Oversize: +1.50
• Stroke: 2T

Specific design

The piston has a curved piston shape, a reed cutout and a MoS2 coating. These features characterize the specific design and make it easier to compare it with the technical requirements of the intended engine.

Vehicle assignment

Intended for:

• Honda CR 500 R (PE 02), built between 1984 and 2001

The diameter of 90.50 mm, the oversize +1.50 and the marking 150 are particularly important for the selection. The PROX cast piston combines a clearly defined dimension with standard compression and the specified 2T version.
