Hm Motard 125 [2003] - Wheel membrane block - Honda CR125R

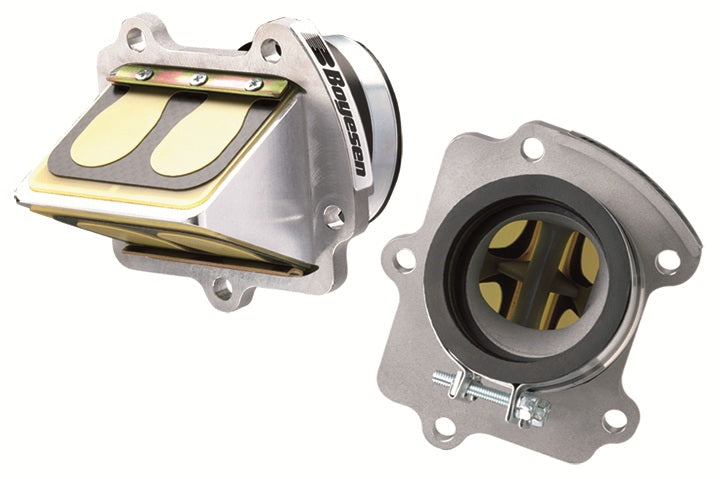

BOYESEN wheel membrane block for Honda CR125R

The BOYESEN wheel membrane block combines a construction developed for the respective motorcycle model with a flow-oriented design. The inlet system uses an optimized inner surface and a 4-way diffuser to direct the air flows and avoid pressure losses. This supports more efficient intake and improved pulling power.

Function and construction

• Membrane block made of 100% aluminum
• Optimized inner surface for air flow
• 4-way diffuser to optimize intake flows
• Model-specific membrane plates with variable flexibility
• Aerospace-grade carbon membrane plates
• Rubber-coated, hydrocarbon-resistant membrane plates for longer seal life

Assembly and scope of delivery

The scope of delivery includes the intake manifold and the fastening clamps. The membrane block is designed for direct assembly without modification.

Vehicle assignment

The BOYESEN wheel membrane block is the vehicle Hm Motard 125, built in 2003 assigned.

Interpretation

The design is based on several technical development approaches: optimized inner surfaces, model-specific membrane plates, hydrocarbon-resistant materials and membrane plates with several opening levels. The RC2 diaphragm blocks were developed for competition use and support optimized intake air routing.
