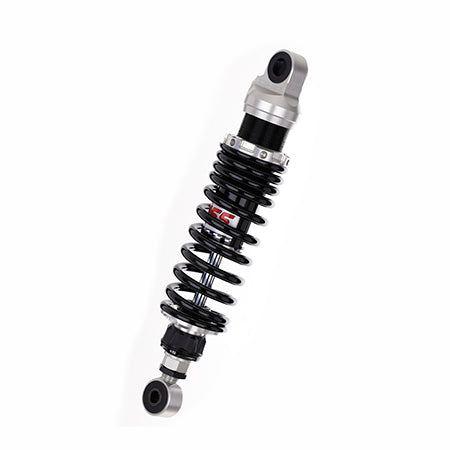

Harley-Davidson XL 1200 X Sportster Forty Eight [2017-2018] - Rear double shock absorber gas

YSS rear double shock absorber gas for the Sportster Forty Eight

The YSS gas dual shock absorber is intended as a replacement solution for the rear suspension of the Harley-Davidson XL 1200 X Sportster Forty Eight. The stereo shock absorber from the TOP line Z series has an integrated pressure vessel and works with a gas emulsion. This means it offers a defined damper design for replacing the rear dampers in accordance with the original equipment manufacturer quality.

Adjustable cushioning and spring base

The preload and rebound can be adjusted for application-specific tuning. The base and spring tuning is designed for the respective application. The linear impact damping supports the controlled operation of the damper in different driving conditions.

Technical data

• Damper type: gas emulsion
• Shock absorber piston diameter: 36mm
• Shock absorber rod diameter: 12mm
• Length: 295-305mm
• Spring Rate: 46-25-35-180
• Adjustment: preload and rebound
• Homologation: E-approved

Vehicle assignment

Suitable for the Harley-Davidson XL 1200 X Sportster Forty Eight, built in 2017-2018.

Factual note

The length is 295-305 mm. When selecting and coordinating, the intended vehicle assignment and the specified setting options must be taken into account.
