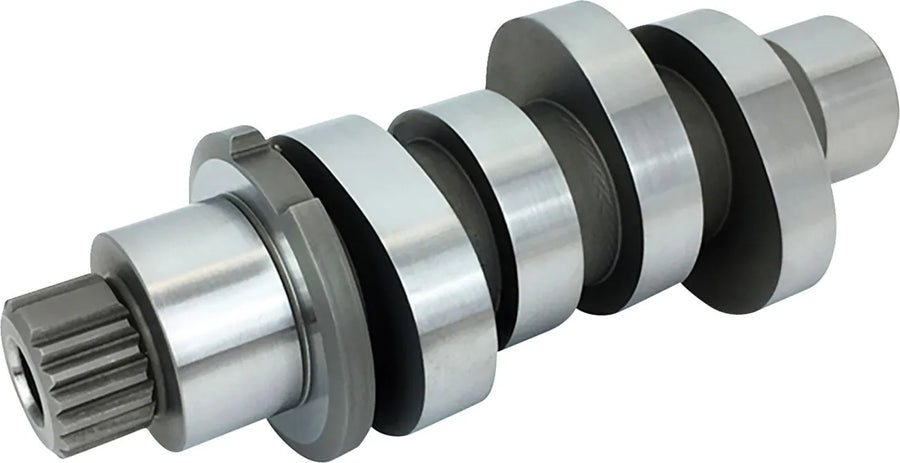

Harley-Davidson FXBR 1923 Softail Breakout 117 [2025] - 618 F Series Chain Drive Camshaft

Harley-Davidson FXBR 1923 Softail Breakout 117 [2025] - 618 F Series Chain Drive Camshaft

This article from FEULING PARTS is intended for the vehicles and years of construction listed below. The model, engine capacity, type and year of manufacture of the vehicle assignment are always decisive.

Technical data

• Outlet closed: 19°
• Exhaust stroke: 0,618"
• Exhaust stroke at TDC: 0,170"
• Outlet opening time: 264°
• Exhaust valve open: 65°
• Inlet stroke at TDC: 0,195"
• Entry opening time: 242°
• Inlet valve open: 20°
• Inlet valve closed: 42°
• Inlet valve stroke: 0,608"
• Grind: 618 Series
• Model: Reapers
• Models: Inlet, exhaust
• Product name: camshaft
• Exhaust valve spread: 113°
• Spread inlet valve: 101°
• Number of pieces: Piecemeal
• Type: Chain drive

Accuracy of fit & years of manufacture

Note on assembly

Before installation, please compare the vehicle assignment and, if necessary, the information in the table.
