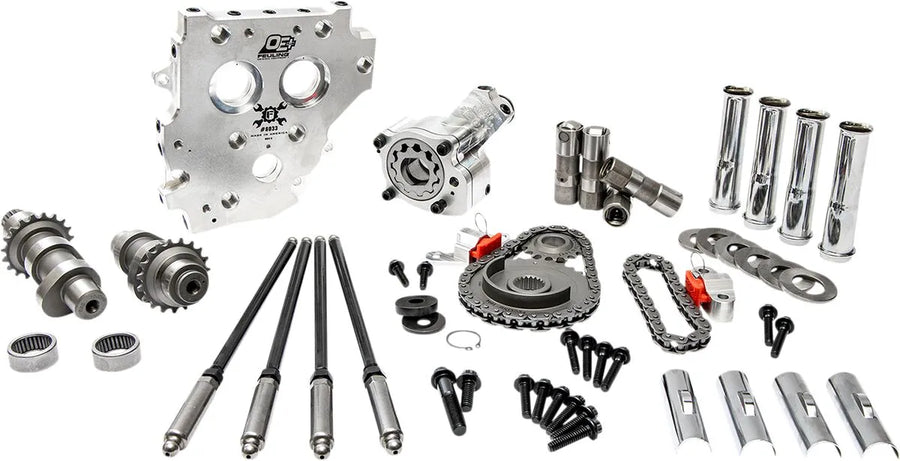

Harley-Davidson FLHTCSE 1690 EFI Electra Glide Screamin Eagle [2004] - OE+ hydraulic timing chain tensioner conversion kit

Harley-Davidson FLHTCSE 1690 EFI Electra Glide Screamin Eagle [2004] - OE+ hydraulic timing chain tensioner conversion kit

This article from FEULING PARTS is intended for the vehicles and years of construction listed below. The model, engine capacity, type and year of manufacture of the vehicle assignment are always decisive.

Technical data

• Outlet closed: 5°
• Exhaust stroke: 0,535"
• Exhaust stroke at TDC: 0,112"
• Outlet opening time: 236°
• Exhaust valve open: 51°
• Inlet stroke at TDC: 0,099"
• Entry opening time: 226°
• Inlet valve open: 4°
• Inlet valve closed: 42°
• Inlet valve stroke: 0,525"
• Grind: 525 series
• Model: OE+
• Product name: Camshaft housing kit
• Exhaust valve spread: 113°
• Spread inlet valve: 109°
• Number of pieces: kit
• Type: Chain drive

Accuracy of fit & years of manufacture

Note on assembly

Before installation, please compare the vehicle assignment and, if necessary, the information in the table.
