Ducati Streetfighter V4 [2025] - Hypure brake caliper right

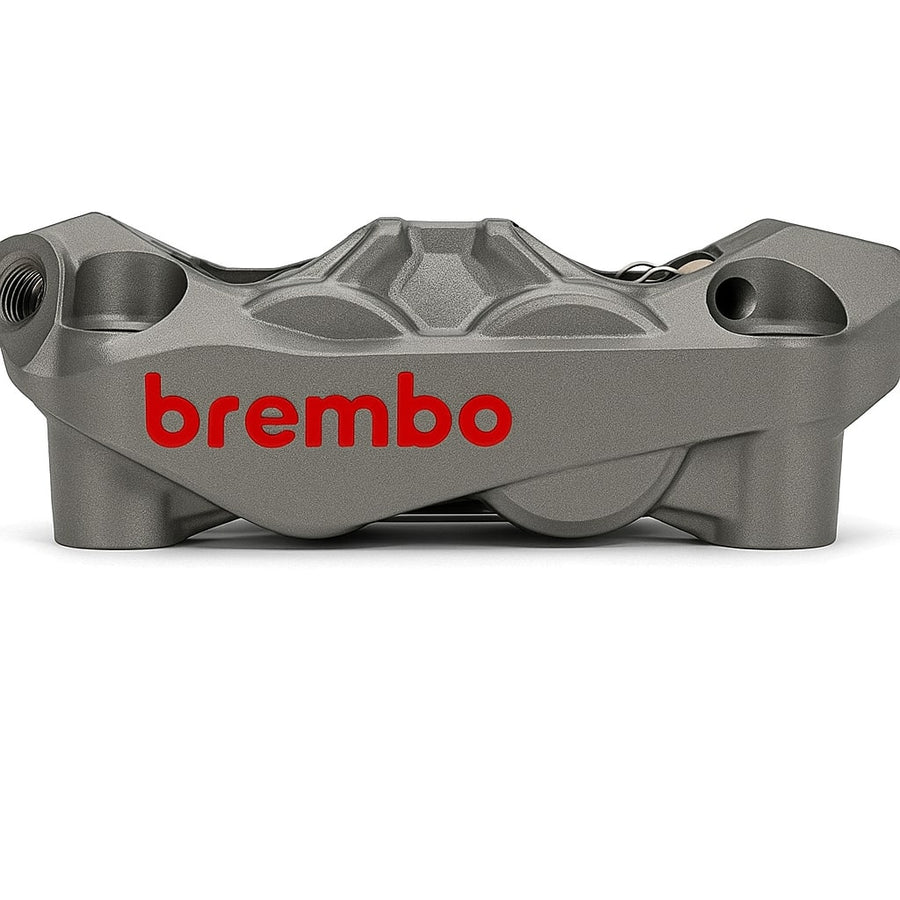

BREMBO Hypure brake caliper right for the Ducati Streetfighter V4

The BREMBO Hypure brake caliper right is designed as a front, radially mounted brake caliper for the 2025 Ducati Streetfighter V4. Its one-piece construction combines a compact design with the four-piston design intended for the application.

Function and construction

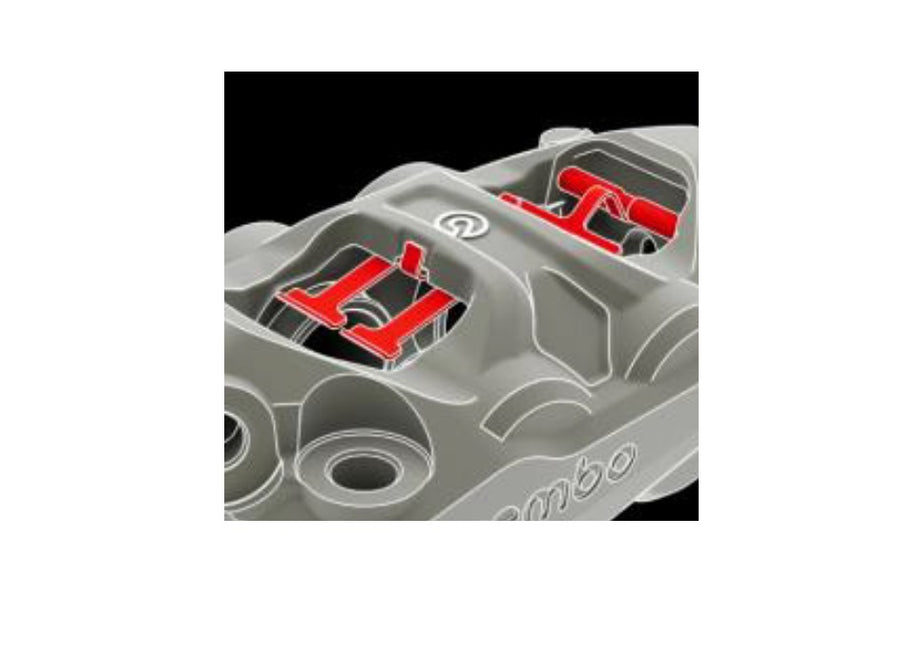

The asymmetrical design reduces weight by 10% compared to reference calipers of the same class without compromising rigidity. Advanced heat transfer supports consistent braking performance. A patented spring/pad/pin system with a specially developed contact surface minimizes residual torque.

Technical data

• Brand: BREMBO
• Type: Radial
• Construction: One-piece
• Material: aluminum
• Manufacturing: CNC milled
• Color: titanium
• Position: front right
• Number of pistons: 4
• Diameter Ø: 17 mm
• Center-to-center distance: 100 mm

Vehicle assignment and information

The brake caliper is assigned to the Ducati Streetfighter V4, built in 2025. The technical design is intended for use with two brake discs. Brake discs with a diameter of 290 to 340 mm and a thickness of 5 mm are compatible.

The clear lines and the titanium design complement the technical focus of the Hypure brake caliper. The position at the front right, the radial fastening with a 100 mm center-to-center distance and the brake disc dimensions mentioned are particularly important for the selection.
