Ducati Panigale V4 S [2018-2024] - Left 5-Button Switch Assembly for I2M Dashboard

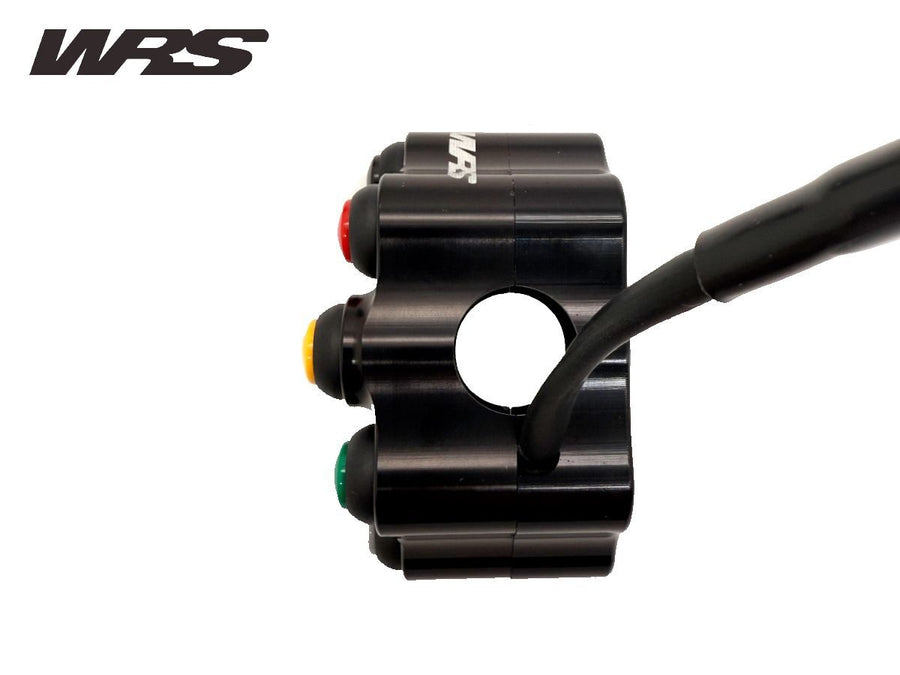

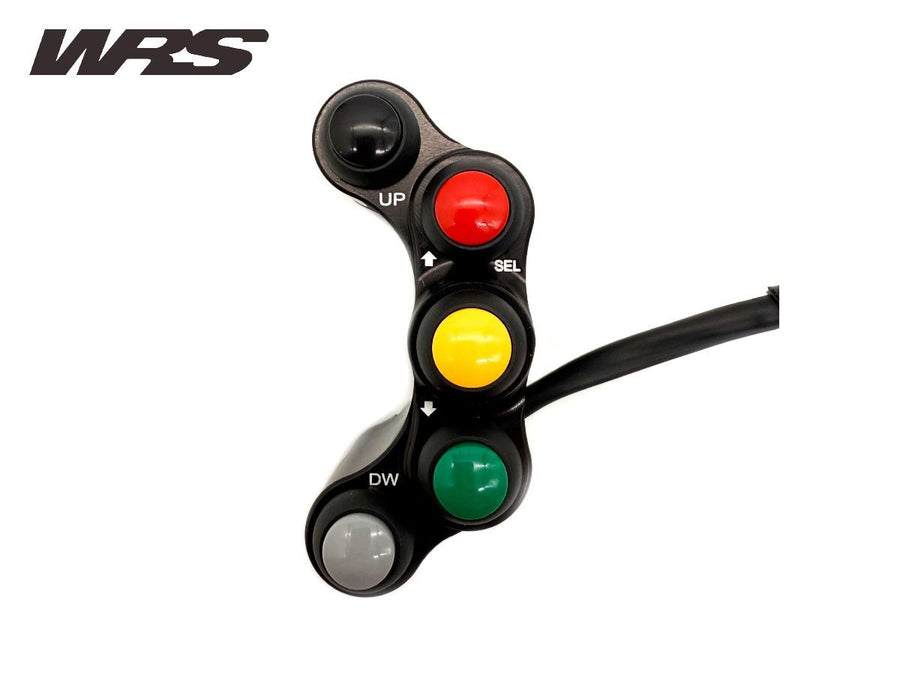

Left 5-button switch assembly for I2M dashboard

The PS004I2M left switch assembly is intended for the 2018-2024 Ducati Panigale V4 S and is compatible exclusively with an I2M instrument. Five buttons are housed in a compact casing made from solid 7075 aluminium.

Compatibility with I2M

This switch assembly is suitable exclusively for I2M instruments and specifically for the I2M Chrome Pro 2 dashboard. It is not designed as a universal switch assembly for other instruments.

Machined from solid material

The housing is machined from solid 7075 aluminium, also known as Ergal, and black hard-anodised. All cables are sealed against the ingress of water and dust.

• Product code PS004I2M
• Five control buttons
• Black hard-anodised finish
• For I2M Chrome Pro 2

Installation instructions

The switch assembly replaces the original mounting clamp or the mounting clamp of a Brembo RCS brake master cylinder. With a different brake master cylinder, the CV001 clamp must also be used.

Connection follows the plug-and-play principle. The original unit is removed and replaced with the new switch assembly without modifying the motorcycle. It remains possible to restore the original configuration later.

Approval

No ABE is available for this item.
