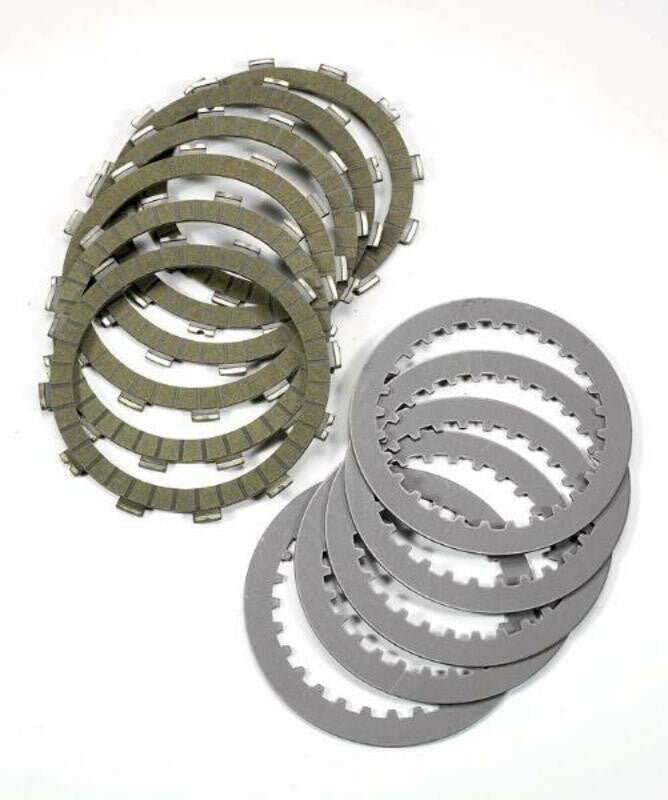

Beta RR 480 4 T Racing [2022-2024] - Pro Race steel and friction disc clutch kit

NEWFREN Pro Race clutch kit for the Beta RR 480 4 T Racing

The NEWFREN Pro Race steel and friction disc kit is designed as a high-quality racing product for the Beta RR 480 4 T Racing in the 2022-2024 model year range. It combines friction disks and steel disks in a coordinated clutch design.

Function and execution

The friction material is mainly based on cellulose, resins and carbon. Its lower compressibility supports stable operation of the clutch. The special disc design improves oil flow and contributes to more efficient operation. The combination of materials and the design of the discs promote constant stability of the pads even under demanding operating conditions.

Technical data

• Kit composition: friction discs and steel discs
• Friction discs: 8 pieces
• Friction disc thickness: 2.8 mm
• Number of edges: 12
• Outer diameter of friction discs: 132.5 mm
• Inner diameter of friction discs: 111.5 mm
• Steel discs: 7 pieces
• Thickness of steel discs: 1.4 mm
• Number of teeth: 6
• Outer diameter of steel discs: 134.4 mm
• Inner diameter at the bottom teeth: 104 mm
• Inner diameter on upper teeth: 91.8 mm

Vehicle assignment

Suitable for the Beta RR 480 4 T Racing, built between 2022 and 2024. The vehicle assignment refers to this model and the complete year range mentioned.
